How to change: Drum window LED light

How to change the LED light of the drum window on your ROEST.

Sections:

Where to buy drum window LED light?

If you are sure the LED light of the drum window is broken (you have talked to our Support Team) visit our e-shop to purchase a new one!

buy now

Before you start

⚠️DISCLAIMER

Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.

⚠️SAFETY INSTRUCTIONS

make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below

Tools

Bean sample tray or similar, to prop the roaster at an angle for easy of disassembling

Parts

Instructions

Step-by-step guide:

1. Remove the top plate.

2. Remove the front décor plate.

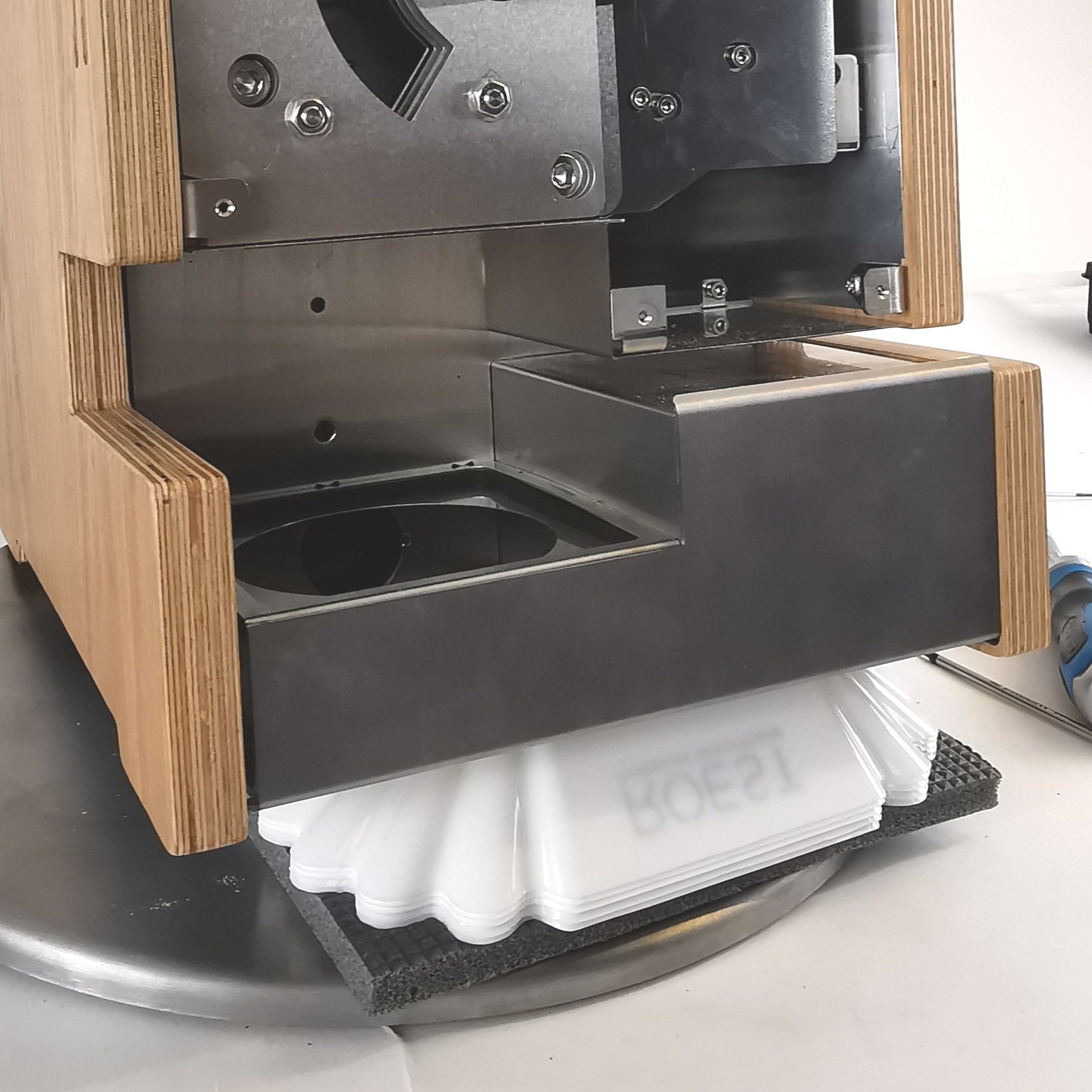

3. Orientate the roaster so that the front is facing you. Lift the front of the roaster and place an item underneath to tilt the roaster back (for this example we have used a few sample trays).

This is to give adequate access to the window LED and to enable the removal of aluminum spacers easier.

4. Remove the LED cable from the PCB and cut any cable ties securing it to the motor bracket.

5. Remove the protective sleeve and keep it for reinstallation. NOTE: if the protective sleeve is damaged, e.g., if a cable can be seen through the sleeve, discard it.

6. Pull the LED cable through the hole located in plate 1.

7. Remove the 6-millimeter nuts. Use the 10-millimeter wrench to loosen them and unscrew them by hand.

8. Remove plate 4 and the four aluminum spacers behind it.

9. Remove plate 3 with the old LED light.

This plate can be scrapped. Separate the metal part from the electronic part, and dispose of it responsibly.

NOTE: Check if the aluminum spacer is stuck to the backside of “Plate 3”; remove the spacer if it has adhered to the aluminum tape.

10. Install the new plate 3 with LED.

1. Ensure that the four aluminum spacers are on top of plate 2.

2. Install the new plate 3 and leave the cable loose.

11. Install the four aluminum spacers on top of Plate 3.

12. Install plate 4.

Install the four nuts and tighten them with the 10-millimeter wrench. NOTE: do not over-tighten the nuts, as this could damage the threads and the subsequent plates.
