How to change: Exhaust temperature sensor
How to change the exhaust temperature sensor on your ROEST.
Where to buy temperature sensors?
If you are sure that a temperature sensor in your roaster is broken (you have talked to our Support Team) visit our e-shop to purchase a new one! The exhaust sensor uses the same probe as the BT sensor.
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
10-millimeter wrench
Cutters
Parts
Exhaust temperature sensor
Cable ties
Tray, or similar, to keep removed components
Instructions
Follow this numbered guide below step by step.
3. If your roaster has First Crack detection, you can optionally remove it for easier access. To do so, pull the card gently off the rubber mounts. Leave the cable connected and place the card to one side.
4. Unplug the Exhaust Temperature sensor from the PCB.
5. Cut the cable ties holding the cable in place.
6. Use a 10-millimeter spanner/wrench to loosen the exhaust sensor, and unscrew the sensor from the drum to remove it.
7. Take off the aluminum spacer from the old sensor, and replace it on the new sensor.
8. Screw the new sensor into the back plate by hand until finger tight. NOTE: Please ensure no resistance when rotating so as not to damage the thread in the back plate.
9. Tighten gently with a 10-millimeter wrench. Do not overtighten, as this can strip the thread and scrap the back plate.
10. Feed the cable from the new sensor into position. Pass the cable alongside the other white sensor cables, behind the USB cable, then connect it to the PCB.

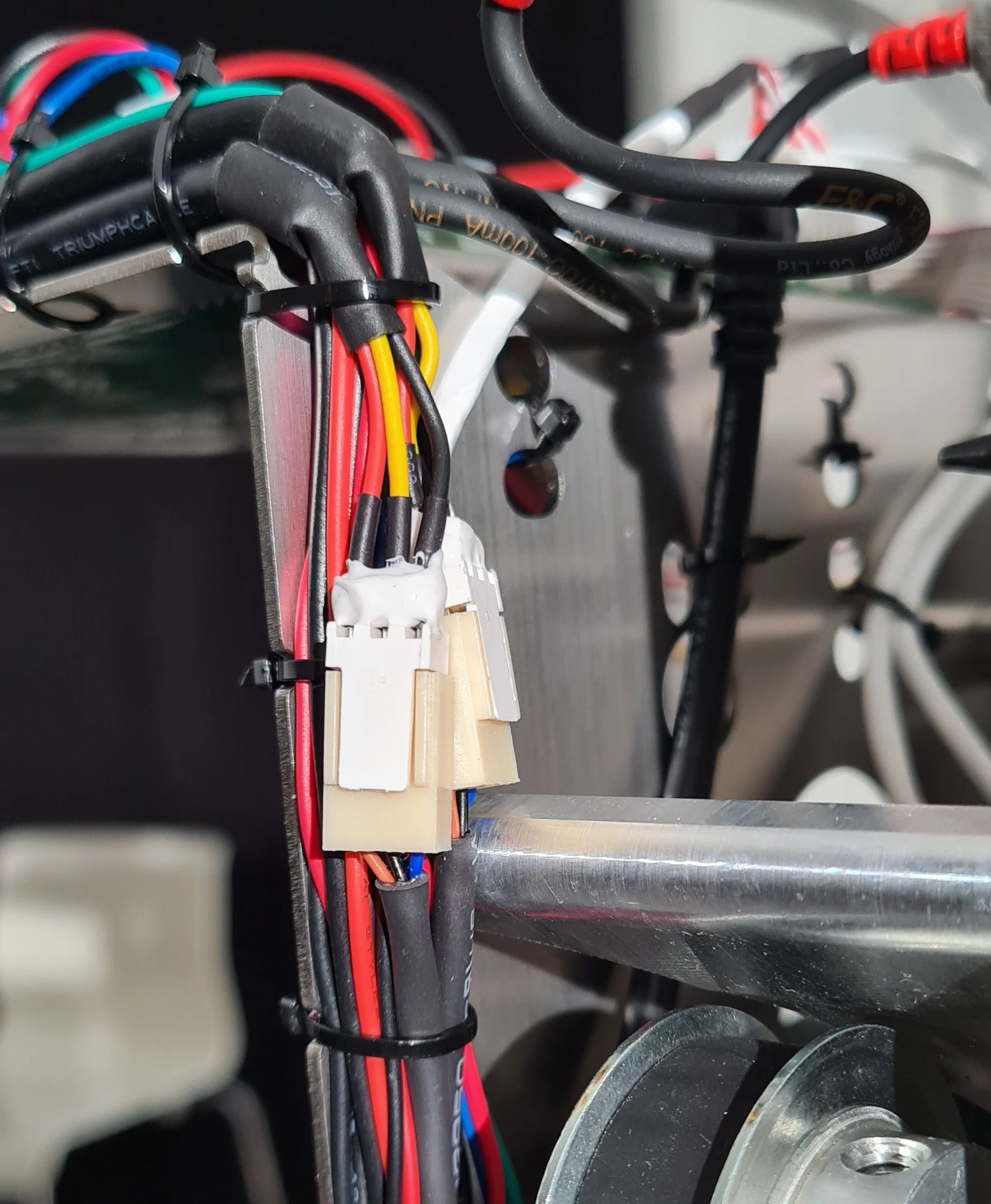

11. Tie two new cable ties to the motor bracket where you removed the cable ties earlier.
NOTE: Cable should not touch rotating pulley. This can damage/destroy the sensor over time.
Use cutters to trim excess ends on cable ties.
12. Re-install FC card.
a. Push FC card into position. Pull gently on the ends of the rubber mounts to secure them in place.
b. First Crack card should NOT touch the back plate of the roaster.
24. Install side panels.
26. Plug the roaster in, turn it on and test the exhaust temperature sensor by starting a roast (beans in the machine). You should see the exhaust temperature appear on the graph in live view. If the exhaust temperature doesn’t appear, please double-check the connection to the PCB, and then contact the ROEST support team for help.
How to align the paddles and replace the bearing
This guide explains how to align the paddles in your drum, and how to replace the bearing holding the paddles if needed.
Sections:
When to buy a new bearing
The bearing on your Roest should last for many years without maintenance. However, sometimes it may be necessary to replace the bearing, or to adjust the alignment of the paddles.
If you need a new bearing, contact our support team for advice, and to order the parts you need.
If your bearing is functional but your paddles have become misaligned, then you can also follow this guide to realign the paddles. To do this you will need to adjust the position of the bearing, but you do not need to replace it. Misaligned paddles can cause squeaking sounds where the paddles scrape against the drum wall.
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
2mm, 2.5mm, 3mm, 4mm, and 5mm hex keys
T20 Torx screwdriver (for machines with wood side panels)
Wire cutters.
Philips screwdriver
6mm and 10mm spanner
Unplug the ribbon cable from the back of the first crack card.
Pull the card off the rubber holders.
Remove the three rubber mounting points with a 6mm spanner
Remove the hoses
Remove both silicone hoses from inside the machine: one connecting the bean cooler to the cooling fan, and one connecting the drum exhaust to the chaff separator
Take the opportunity to clean out the hoses with a vacuum cleaner and a long-handled brush, or use compressed air.
Remove the charge handle and the bean stopper.
Lift out the charge handle and set aside
Remove the 5 bolts holding the bean stopper in place with a 3mm hex key:
Four on the top
And one at the bottom.
Lift the bean stopper up to a 45 degree angle
Then pull it towards you to remove it
Take this opportunity to deep clean the bean stopper if needed. For stubborn build-up you can soak the part in hot water and espresso machine detergent or a food-grade degreaser.
With the bean stopper removed, you can also access the inside of the drum. If there is a lot of build up here, you can take this opportunity to scrub the drum walls with a stiff brush.
Remove the chaff separator
Follow this guide as far as Step 9.
Remove the back plate
Unplug the chassis fan and wifi antenna from the PCB (The connectors are marked 5 in yellow and 8 in red)
Cut the cable tie holding the chassis fan cable to the bracket
Remove the screw at the bottom of the fan mesh
Then slide the plate out to the right and set aside
Remove the proximity sensor plate
Reach into the drum and hold the paddles to prevent the axle from turning. You can also do this by carefully jamming the paddles with a screwdriver or hex key.
Loosen the bolt on the axle with a 4mm hex key, then remove the bolt and the proximity sensor plate.
Loosen the bearing
Loosen the grub screws holding the bearing to the axle using a 2mm hex key
Loosen the bolts holding the bearing to the bracket using a 5mm hex key. You can hold the nuts on the opposite side of the bracket in place using a 10mm spanner.
Remove the bearing
Skip this step if you are only aligning the paddles, not replacing the bearing.
If you are replacing the bearing, remove the old bearing completely and replace with the new one. Loosen the grub screws on the new bearing if necessary to fit it onto the axle.
Press the bearing flat against the bracket and loosely fasten in place with the two bolts. On the opposite side of the bracket, each bolt is held in place with a washer and a nut.
Align the paddles
First check the angle of the axle. Position the paddles so that you can see how the edge of the paddle aligns with the drum wall.
The edge of the paddle should be parallel to the drum wall
Push the bearing up or down in the bracket until the edge of the paddle is parallel to the drum wall.
Once the paddle is aligned, hold the bearing in place and gradually tighten the bolts, holding the bearing to the bracket to keep the correct alignment.
Alternate between the bolts, tightening a little at a time, until both bolts are tight.
After tightening, turn the paddles and double-check their alignment is still correct relative to the drum wall.
Next, check the horizontal position of the axle. With one finger, push the axle towards the front of the machine as far as it will go. Then insert a hex key into the trier hole, and push the axle slightly back.
Push the axle horizontally from either side to align it.
Look inside the drum and position the paddles so that the gap between the paddle and the drum wall is the same on each side.
Once the paddles are in position, re-tighten the grub screws holding the axle to the bearing.
Turn the paddles one more time to check the alignment in both directions, and adjust as necessary.
Remount the proximity sensor plate.
Hold the paddles in place as before to re-fasten the bolt. There should be a washer between the bolt and the plate.
After remounting the plate, double check that the proximity sensor is still in the correct position. It should be no more than 1mm away from the plate, but the plate must be able to spin freely without touching the sensor.
Check that the drive belt is straight.
If you have moved the axle, the drive pulleys may no longer be parallel. If needed, loosen the grub screws on the large pulley, and slide it into position so that the drive belt is straight.
Check that the axle now spins freely.
You should be able to easily turn the axle with just one finger on the proximity sensor plate.
Remount the chaff separator
Follow the second section of this guide
Attach rear panel
Slide the rear panel back into place from the right-hand side. As you slide it into place, make sure the chassis fan housing overlaps the bottom part of the back plate.
Ensure there are no cables caught between the back plate and the frame of the machine, and then fasten the plate with one screw at the bottom of the fan mesh, and the four screws securing it to the chaff separator.
Remount the bean stopper.
Push the bean stopper back into position at a 45 degree angle, and then straighten it up until it lines up with the screw holes in the chassis.
Fasten the four bolts at the top, and one at the bottom. On newer machines, one of the bolts is tapered, to make it easier to insert in the bottom hole.
Check that the bean stopper doesn’t prevent the charge handle from dropping down freely in its slot: if it does, you may need to push the bean stopper slightly back into position before tightening the bolts.
Re-attach cables and hoses
Plug the cables for the chaff separator, chassis fan, and WiFi antenna back into the PCB. The chassis fan cable should pass under the PCB and then double-back on itself where it will be attached to the PCB bracket.
Replace the cable ties: One holding the chaff separator fan cables in place, and one holding the chassis fan and heater fan cables to the bracket.
Remount the silicone hoses. Ensure that they slide fully into position, then tighten the clip holding the hose to the bottom of the bean cooler fan.
Remount the first crack card
Follow this guide
Final steps
At this point, it’s a good idea to turn the machine on and double check that the RPM proximity sensor is working correctly. The light on the sensor should turn on and off as the axle turns. If it does not, check the position of the sensor and replace if necessary.
If the RPM sensor is working, then put the side panels and top plate back on.
Before roasting any coffee, it’s a good idea to test that everything is working correctly. Start roasting a batch without any beans. Manually set the power to 80%, and let the roast run for 10 minutes. If the paddles now spin correctly, congratulations! If you are still having problems, please contact the support team for help.
Firmware update v20.2.0
In November 2023 we sent an update of the firmware to version v20.2.0. If your roaster did not update itself prior to 13 December 2023, we now need to give it a nudge to help it update.
To check if your roaster has been updated, tap on the timer to enter the main menu, then tap on ‘Machine Setup’. In the lower right corner of this menu, you will see the software version. If this says Version 20.2.0 then you already have the latest version and no further updates are needed.
If not, then please fill in the form below and we will set up your roaster to download the update. When your roaster is ready to update itself, we’ll notify you by email.
You can find the name and production number of your machine on the sticker behind the front plate
Reinstalling First Crack Card Firmware
This is a guide for reinstalling the default firmware onto your first crack card. Only follow the steps in this guide if you have received an email from support instructing you to do so. In that email, you will have been sent a file to download, with a filename ending in “.bin”. This file is the firmware that you will be installing.
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
Micro-USB cable
Jump wire
Procedure
Note that this guide has been written for the Windows operating system.
Step 1: Download and install the installer
Download and install the ‘STM32CubeProgrammer’ software from this page. This program allows you to communicate with the first crack card.
Step 2: remove the first crack card from your roaster
Unplug the ribbon cable from the back of the first crack card, then pull the card off its rubber holders.
Step 3: Connect the card to your computer
On the card, there are ten pins where the ribbon cable plugs into. Use the jumper cable to connect the second pin in the top row to the last pin in the bottom row. Plug the micro-USB cable into the card, and plug the other end into your computer.
With the jumper wire still connected, press the button on the first crack card.
Step 4: Flash the firmware
Open the STM32CubeProgrammer program. On the right hand side, select ‘USB’ from the drop down menu.
Click the refresh symbol. The USB port that the first crack card is connected to should appear in the drop down menu (e.g. ‘USB 1’).
Click on ‘Connect’.
In the toolbar on the left, click on the second icon from the top.
Then in the left panel, under ‘Download’, click ‘Browse’ and find the firmware file on your computer.
Click on ‘Start Programming’. If the firmware is successfully installed, you will see a message saying ‘File download complete’.
Once the firmware is installed, you can remove the jumper cable and USB cable and reinstall the first crack card.
How to install: Inlet temperature sensor
How to install the inlet temperature sensor on your ROEST.
Sections:
Where to buy an inlet temperature sensor?
Read here on how to purchase an inlet temperature sensor for your roaster.
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications, and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Included parts
Inlet temperature kit: new heating element housing, inlet temperature probe, gasket, two screws, cable ties and 3-millimeter hexagonal key (long L-shaped)
The finished assembled inlet temperature part.
Additional tools needed
2.5-millimeter hexagonal key (L or T-shaped)
Scissors
Slotted screwdriver 2-millimeter
Instructions
before starting - important!
Send an email to support@roestcoffee.com with your order number, production number, and machine name. This information is needed in order to give your machine access to the inlet profiles. Production number and machine name can be found on a sticker at the front of your roaster.
Part 1 - assemble the inlet temperature kit
Unpack the temperature probe. Install the gasket on top of the probe and insert it through the holes in the new housing on the flat side. Push it on until you hear a click. Use the two screws to tighten it into place, but don’t overtighten it as the white piece can break.
part 2 - install the inlet temperature
2. Remove the right-hand side panel.
3. Take off the front décor plate.
4. Only for L100, remove the k-type cable from the PCB. Free the cable from the heater fan.
When you remove the drum temp sensor, leave the connector wide open. The connector on the right is in the correct position, and the connector on the left is in the wrong position.
5. Disconnect the heater fan from the PCB and cut the cable ties holding the cables from the heater fan in place.
6. Disconnect the heating element cables from the wago connectors. Undo the two screws on the heating element lid with a 2.5-millimeter hex key, and lift the heating element away from the housing. Put it aside. NOTE: Before disconnecting, take a photo or make a reference to ensure that the correct cable goes into the correct wago connector when reconnecting. Remove the silicone hose.
Only open the two flaps that read Wago 221.
7. Remove the six cap head bolts holding the heater fan with the 3-millimeter hexagonal tool.
8. Remove the old heater fan assembly. To do this safely and correctly, follow these steps:
1. Push the heating element housing towards the drum (this will tilt the assembly at approximately 45˚).
2. Pull the heater fan assembly out while maintaining the 45˚ angle. Pull the drum temperature sensor cable out from the holes in the heater fan.
8. Remove the superwool bracket and the superwool.
Superwool and bracket
9. Remove the heating element housing from the heater fan by loosening the following three screws.
The tool you received with your kit should be long enough to reach this screw.
Leave the bolts loose like this, do not remove them yet.
Slide the housing away from the two front bolts.
Slide the housing away from the two bolts; now, the housing is free to be removed. Lift the housing upwards to remove it.
10. Remove the old inlet housing and install the new one with the inlet temperature.
Remove the mica tube by pulling it out.
Undo the three bolts and remove them.
Remove the spacer from the old inlet housing.
Install the spacer on the new inlet housing by leaving all three screws loosely done.
Leave space between the bolts and the housing.
Slide the heater fan on the new inlet housing, push it forward until the heater fan covers the spacer, and tighten the three screws. Install the mica tube again.
11. Install the heater fan with the new inlet temperature.
Cut the super wool in half.
Slide the inlet temperature probe through the slit while lifting up the superwool.
Slide the heater fan in place.
Make sure there is no gap.
Loosely install the six head bolts holding the heater fan in place. With the bolts loose, push the heater fan as close as possible to the drum, then tighten the four outermost bolts. Install the super wool and the bracket, tightening the remaining two bolts. Reinstall the heating element.
Push the bracket down as much as possible and make sure the screws secure the bracket.
Make sure the orientation of the heating element is correct. The red rubber component should be closer to the PCB.
12. Install and connect the cables.
Find the two k-type sensors and pull them out towards you, so they are easily available; the inlet temperature sensor will be marked with black tape so you can easily recognize it.
Pull the drum and inlet sensors through the two holes in the heater fan.
Install the drum and inlet temperature sensors in the screw terminals. Ensure that the drum and inlet are installed into the proper terminals and that the polarity is correct. The right positions are shown in the photo above.
Reconnect the heater fan and the heating element cables (use the reference photo you took at the beginning to ensure they are inserted correctly). Reinstall the orange hose for the exhaust. Use the new cable tie where you cut the cable tie at the beginning of the process.
13. Install the front décor plate. Instructions here.
14. Install the side panels. Find instructions here.
15. Install the top plate following this guide.
You are now ready to use your new inlet temperature sensor!
Video instructions
Having issues?
How to purchase the right Inlet Kit
Different models require different needs for inlet kits. This is a guide on how to determine which equipment is the one for you:
Important note: If the production number of your machine begins with P13_ or lower, you may also need to buy additional parts to be able to install the inlet kit. Please contact support for advice on what extra parts you need for your machine before buying an inlet ket. Machines numbered P10_ and below cannot be upgraded.
1.PART: Make sure you have the latest firmware
You can find information about the latest version of the firmware here. Your machine should have automatically updated to the latest firmware when it is connected to the internet.
To check if your machine is up to date, go into the MACHINE SETUP menu on the touchscreen - and check the version number is the same as the latest firmware update (at the time of writing, that is 20.2.0).
If your roaster did not update itself to v20.2.0 before 13 December 2023, then we need to manually push an update to your machine: please fill out the form here for assistance.
2.PART: DO YOU NEED A NEW PCB?
Some roasters might need a new PCB to use the Inlet sensor.
How to determine if you need a new PCB:
1. Go to SERVICE MENU (how to find hidden SERVICE MENU)
2. Press on DEBUG HARDWARE
3. Look up line “TC1 CHIP (INLET): …”
- TC1 CHIP (INLET): INSTALLED - no need for new PCB
- TC1 CHIP (INLET): NOT INSTALLED - you need a new PCB
2. Press on DEBUG HARDWARE
3. TC1 CHIP (INLET) is installed and you don’t need a new PCB for inlet sensor.
How to install an Inlet sensor
Before purchasing an Inlet sensor, please check the manual and watch the video to determine if you or your technician can handle the instructions and safely install the sensor.
Different inlet kits and pricing
My PCB is ready for the inlet temp sensor.
Inlet kit without new PCB is now available for purchase:
You want to install it yourself: 350 EUR incl. shipping (BUY NOW)
You want us to install it for you: 350 EUR + 200 EUR shipping (shipping fee is only estimated, we schedule pick up and send it back to you)
My PCB is NOT ready for the inlet temp sensor
Inlet kit with a new PCB
New PCB available for purchase:
You want to install the inlet sensor and new PCB yourself: 550 EUR incl. shipping (BUY NOW)
You want us to install it for you: 550 EUR + 200 EUR shipping (shipping fee is only estimated, we schedule pick up and send it back to you)
Inlet kit with a fixed PCB
Instead of purchasing a new PCB, you can have the missing chip installed on your current PCB.
We will install the chip on your provided PCB for 350 EUR + 50 EUR shipping. (BUY NOW)
You want us to install chip on PCB and inlet: 350 EUR + 200 EUR shipping (shipping fee is only estimated, we schedule pick up and send it back to you)
Please get in touch with our sales team if you are interested in the inlet temperature sensor: sales@roestcoffee.com
Cabling
A guide to how the cables within the machine are tied and how you should tie them up if having to undo them when changing a component or doing repairs.
Why do we use cable ties?
We use cable ties on our cables for safety reasons and to keep them neat inside the machine. If you have to change a component, the probability of having to cut some cable ties and redo them is significant. Trying to navigate the cables within the machine can be overwhelming, especially where they go and what they do. This guide aims to help you in case of having to navigate our cables and cable tie system.
Left-hand side - Motor bracket
The three pictures below show how most cables are tied to the motor bracket.
Top view, what you see when removing the top plate.
The left side of the motor bracket is seen when the left-hand side panel is removed.
The right side of the motor bracket is seen when the left-hand side panel is removed.
Left side of the motor bracket:
We have the power cables to the heating element on the left side of the motor bracket. It is crucial that these are tied alone on this side and do not touch any other cables. Below the motor bracket, it is hard to separate them entirely from other cables, but one should try as much as possible.
Right side of the motor bracket:
On the right side, we have the rest of the cables going from the PCB to one of the components at the bottom of the roaster (SSR, power pack, buzzer, etc.). On this side there are a few things to notice:
These are the extension cables to the RPM and Cooling tray proximity sensors. It is very crucial that the white connectors or the cables close to them are not crushed by cable ties. They should rather be kept loose from the cable ties in this area, like it’s been done in the photo.
The ET and Exhaust temperature sensors should be tied like in the photo above. Make sure not to let the cables touch the pulley.
The BT temperature sensor is positioned between the two pulleys, and you should ensure not to let the BT temperature cable touch them. The third photo shows how the BT cable must be positioned around the Y-piece to get it out of the way from the pulleys.
Right-hand side
The heater fan, chassis fan, drum temperature sensor, and LED window cables are tied to the motor bracket on the right-hand side if you look from the top.
Chassis fan
Cables should be kept out of the chassis fan in the back.
Cables can get stuck in the chassis fan; there will be a loud sound from this area if that is the case.
How to install: Inlet temperature sensor
How to install the inlet temperature sensor on your ROEST.
Sections:
Where to buy an inlet temperature sensor?
The inlet temperature sensor will be available to buy in January.
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications, and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
2.5-millimeter hexagonal key (L or T-shaped)
Scissors
Slotted screwdriver 2-millimeter
Included parts
Your inlet temperature sensor part.
Inlet temperature installed into the heating element housing
Cable ties
Aluminum tape
3-millimeter hexagonal key (long L-shaped)
Instructions
2. Remove the right-hand side panel.
3. Take off the front décor plate.
4. Only for L100, remove the k-type cable from the PCB.
When you remove the drum temp sensor, leave the connector wide open. The connector on the right is in the correct position, and the connector on the left is in the wrong position.
5. Disconnect the heater fan from the PCB and cut the cable ties holding the cables from the heater fan in place.
6. Disconnect the heating element cables from the wago connectors. Undo the two screws on the heating element lid with a 2.5-millimeter hex key, and lift the heating element away from the housing. Put it aside. NOTE: Before disconnecting, take a photo or make a reference to ensure that the correct cable goes into the correct wago connector when reconnecting. Remove the silicone hose.
Only open the two flaps that read Wago 221.
7. Remove the four cap head bolts holding the heater fan with the 3-millimeter hexagonal tool.
Two located at the front of the roaster
And another two located at the back.
8. Remove the two cap head bolts holding the super wool bracket using the 3-millimeter hexagonal tool.
One bolt is located at the front
And the other two is located inside the roaster, right below the screws holding the blower fan in place (step 6).
8. Remove the superwool bracket and the superwool.
Superwool and bracket
10. Remove the old heater fan assembly. To do this safely and correctly, follow these steps:
1. Push the heating element housing towards the drum (this will tilt the assembly at approximately 45˚).
2. Pull the heater fan assembly out while maintaining the 45˚ angle. Pull the drum temperature sensor cable out from the holes in the heater fan.
11. Remove the big piece of super wool now visible with the heater fan removed.
12. Cut the big piece of super wool at the angle where it bends. Then place the smaller piece close to the drum using a tool to push down the wool, so it doesn’t cover the holes.
Incorrect: The super wool shouldn’t cover the holes like in the photo above.
Correct placement of super wool.
13. Remove the housing for the heating element.
Undo the two bolts on the lid.
With a long 3-millimeter hexagonal key, loosen (not remove) the bolt sitting at the bottom of the housing.
Close view of the bolt inside the housing.
Loosen the two bolts outside the housing, connecting the heating element housing to the inlet housing we are switching out.
Leave the bolts loose like this, do not remove them yet.
Slide the housing away from the two front bolts.
Slide the housing away from the two bolts; now, the housing is free to be removed. Pull the housing upwards to remove it.
14. Remove the old inlet housing and install the new one with the inlet temperature.
Remove the mica tube by pulling it out.
Undo the three bolts and remove them.
Remove the spacer from the old inlet housing.
Install the spacer on the new inlet housing by leaving all three screws loosely done.
Leave space between the bolts and the housing.
Next, insert the k-type sensor through this gap.
Insert the new inlet housing. Push the housing towards the drum.
Try to minimize the gap between the housing and the drum.
Make sure the holes of the inlet housing are aligned like in the photos below:
Insert the six bolts but don’t tighten them yet.
Use a 3-millimeter hex key to insert all six bolts loosely.
Leave the bolts loose like this.
Push the inlet housing towards the drum, closing any gaps between the two.
Incorrect placement of inlet housing, notice the gap.
The inlet housing should be tightly pushed into the drum, like in the photo above.
Tighten the four bolts connected to the inlet housing and insert the small piece of super wool we removed initially. Leave the remaining two bolts loose.
Make sure the super wool doesn’t cover the bolts.
Insert the super wool bracket:
Make sure the bracket is installed correctly on the two remaining loose bolts.
Push down on the bracket and tighten the bolt.
Incorrect installment of the bracket. The bracket should not cover the bolts.
Correct installment of the bracket.
Push down the bracket on the left side and tighten the final bolt.
Insert the last piece of super wool by pushing the bracket downwards and inserting the super wool under the inlet housing.
Make sure to push the wool properly, so there is no gap, as shown in the photos below.
Too much of a gap.
Correct insertion of super wool where the gap is as closed as it can be.
Find a piece of aluminium tape.
Install the tape as in the photo above, ensuring the brackets are firmly closed together.
15. Install the rest of the heating system.
Slide the heating system on top of the new inlet housing.
As seen from above, you should position the heating element housing like this. You want to be able to slide the housing around the bolts.
How it looks inside after you’ve slid the housing into place.
How it should look on the outside before sliding the housing into place.
How it should look like after sliding the housing into place.
Tighten the screw on the inside..
And the two on the outside.
Insert the mica tube.
Use two fingers to firmly push the mica tube in place, making sure it’s pushed all the down.
Insert the heating element and tighten the two bolts.
Make sure the orientation of the heating element is correct. The red rubber component should be closer to the PCB.
16. Connect all the cables:
Connect the heating element to the wago connectors.
Install the orange hose before proceeding with the k-type sensors. Make sure it’s properly on, and there is no gap.
Ensure the hose is pushed correctly on the opening to the chaff separator. Look at the images below for reference.
This is too much of a gap.
Push the hose as far on the opening as you can.
16a. Install the drum temperature sensor:
Find the two k-type sensors and pull them out towards you, so they are easily available; the inlet temperature sensor will be marked with black tape so you can easily recognize it.
Pull the drum temperature sensor through the bottom hole of the heater fan.
Then pull it through the top hole of the heater fan.
Pull the sensor entirely through the top hole, but make sure it’s not so tight that it might damage the cable.
Make a note of the color code on the sensor. Yellow is positive; red is negative.
You should install the drum temperature in the screw terminal shown the in the photo. Make a note of which terminal entrance is the positive and negative one. Make sure the hole is completely open before inserting the wires. Tighten and make sure the wires are not loose and can slip out.
The cable can be positioned between the LED light and the heater fan component.
16b. Install the inlet temperature sensor:
Pull the inlet temperature sensor through the bottom hole.
And then through the top hole the same way as with the drum temperature sensor.
Install the inlet temperature sensor in the other screw terminal. As with the drum temperature sensor, yellow is positive, and red is negative. Again, make sure the terminals are completely open before inserting the cables. Tighten, and make sure none of the wires can slip out.
The cable can be left on the side, as shown in the image above.
17. Connect the heater fan to the PCB:
Maintenance
Maintenance of your sample roaster determines how well it performs. To keep up the quality of your roasted coffee, follow the basic cleaning schedule of your ROEST sample roaster.
Here you can find the recommended cleaning schedule for your ROEST machine. Before starting, make sure to follow the safety instructions!
How often you need to clean your machine depends on how often you roast, how many batches you’ve roasted, how dark you roast, and the size of your batches. Oil and fat especially will be difficult to remove with time.
Sections:
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
FREQUENT CLEANING - every 100 batches or weekly
Depending on your use, after about 100 batches or weekly, your sample roaster needs a quick clean-up. It includes three areas: filter under the bean cooler, chaff drawer, and fan gitter. Before starting, follow the safety instructions!
SAFETY INSTRUCTIONS
Switch off and unplug your roaster before starting.
WHEN
After 100 roasting sessions.
TIME
5-10 minutes
TOOLS
Brush, fiber cloth
steps
FILTER UNDER THE BEAN COOLER
Remove the bean cooling tray and empty the filter. You can also vacuum the area under the bean cooler.
CHAFF DRAWER
Switch off the roaster and unplug it. Open the chaff drawer, remove the airtight foam, empty it (it should be emptied every 20-25 batches), and wipe it with a paper cloth or brush. Read more here.
FAN GITTER
Make sure the roaster is switched off and unplugged. Removing the fan gitter and using compressed air to blow dust away is best. You can also use a dusting cloth and wipe the dust off. If you don’t remove the fan gitter, be careful not to push too much dust into the machine, as it can cause issues with overheating.
recommended: Impellers
It’s wise to pay attention to your impellers as well. After a while, they will be covered with oil and fat from the coffee, and the more regular cleaning you do, the easier you will do a deep clean in the future. For routine cleaning, you don’t have to remove them, but wiping them off as much as possible with a cloth, a brush, or compressed air is wise.
recommended: ventilation exit from the top
The area behind the charge handle can get filled with beans; if not removed, they will melt and become very difficult to remove. First, remove the top plate and then remove the charge handle. Remove any beans that may be stuck there.
Watch the video below with detailed steps of the regular maintenance process.
Recommended steps to add into the frequent cleaning routine:
DEEP CLEANING - AFTER 1000-5000 BATCHES OR MONTHLY
After about 1000-5000 batches, your ventilation should be deep cleaned if you haven’t already. The best practice is to do this regularly, so oil and fat don’t get a chance to build up, making it harder to clean the impellers properly. The process includes two areas: ventilation exit in the back and from the top of the roaster. Follow the instructions to clean your ROEST sample roaster properly.
SAFETY INSTRUCTIONS
Let your ROEST cool down properly. Switch off and unplug the roaster before starting.
WHEN
After 1000-5000 roasting sessions or monthly.
TIME
1hr +
TOOLS
2-millimeter hexagonal key, brush, microfibre cloth, vacuum cleaner or pressurised air, degreasing chemical such as espresso machine detergent or PBW cleaner.
steps
VENTILATION EXIT IN THE BACK OF THE ROASTER
Before starting make sure your roaster is switched off and unplugged.
To clean the ventilation exit in the back of the roaster, remove the ventilation hose. Follow this guide on how to remove the impellers and soak them in hot water and fat remover or espresso detergent.
VENTILATION EXIT FROM THE TOP
Before starting make sure your roaster is switched off and unplugged.
Start with removing the top plate. Carefully place it on the side. Remove the charge handle. Clean the ventilation exit using a brush. If beans or dirt has melted into the metal, the part can be removed and soaked in hot water and fat removal/espresso detergent.
Roaster overview
The following images show an overview of the front and back of your ROEST.
Sections:
Front overview
1. HOPPER for adding beans to the roaster.
2. BEAN CHARGE HANDLE for dropping the beans into the drum.
3. ROTARY ENCODER KNOB for adjusting settings.
4. BEAN DROP HANDLE for preheating the drum or manually releasing the beans.
5. BEAN TRIER for checking beans during the roasting process.
6. TOUCHSCREEN for full manual mode (displaying parameters and adjusting variables).
Machine parameters
If you would like to adjust your machine settings, you can access them via Machine Setup on the touchscreen.
1. Bean cooling duration: Duration of increased speed after drop.
2. Bean cooling %: Percentage speed after drop.
3. Bean cooling idle %: Percentage speed while idling.
4. Temperature reading: Celsius or Fahrenheit.
5. Bean cooler light and Window light: Can be turned ON or OFF.
6. Cool. tray warn (BETA): Coming soon.
IMPORTANT. The bean cooling fan is always ON, but can be set to increase in speed when the coffee is dropped.
If you don’t want the bean cooling fan to increase speed after dropping, set the timer to 0 seconds or the fan speed to the same rate as the idling speed.
All about the Service Menu
What is the SERVICE MENU
The service menu is a secret/hidden menu for troubleshooting purposes guided by the Support team. Here you can find a guide on how to find this menu and all recommended settings available to you.
Important: Do not change anything (except listed here) in the service menu unless recommended by our support team.
How to enter Service Menu
Service menu is hidden in the right bottom corner of the main menu:
1. Enter the main menu.
2. Tap on the bottom right corner of the screen, then toggle the knob.
3. “SERVICE” will pop up.
Recommended PID Settings
These are the recommended values for PID settings. First - read above: How to enter Service Menu.
1. Go to SERVICE MENU
2. Press on Adjust PID
3. These are the recommended values for PID settings.
(Important note: Add to AirT, Add to BT, and Add to InletT are for calibration and should not be changed without dialog with ROEST. These values are unique for each machine).
Recommended Ventilation Settings
These are the recommended values for VENTILATION settings. First - read above: How to enter Service Menu.
1. Go to SERVICE MENU
2. Press on SETTINGS
3. These are the recommended values for VENTILATION settings.
If your Roest is situated at 1200m above sea level or higher, you should increase the heater fan setting (3600rpm or more), to boost airflow and to extend the lifespan of your heating elements.
How to change: Proximity sensor - RPM
How to replace your RPM (Motor) Proximity sensor.
Sections:
When to replace your RPM Proximity sensor
If you have issues with the motor, it could be due to a faulty proximity sensor. Be sure to check that your motor gear ratio settings are correct, and before buying a new sensor, go through our troubleshooting guide for the RPM proximity sensor.
Where to buy a Proximity Sensor
Your spare universal proximity sensor was sent along with your ROEST. You must place an order if you no longer have a spare one. The nonflushed type is recommended for the motor RPM, but both work.
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
12-millimeter spanner.
Instructions
Before starting - remove the top plate and lefthand side panels.
Place your roaster, so you have a good view of the sensor.
View of the proximity sensor from the left-hand side. Take a photo or note how the cables are tied along the metal bracket. The most important thing is to separate the two left cables (burgundy and blue) from the right side cables.
Close-up of the proximity sensor.
Use the 12-millimeter spanner on the nuts holding the sensor in place, and unscrew the sensor from the bracket. The sensor cable is tied along the metal bracket (called the motor bracket), and all of these ties need to be removed. Remove the old sensor from the PCB, and connect the new one. Feed the cable down the metal bracket the same way as the old one, and cable tie all the cables the same way it was before. When fitting the RPM proximity sensor, ensure the distance between the RPM plate and sensor is not too great; it should be as small as possible without them touching. The sensor should flash red when the machine is powered on.
You can carefully test the roaster without the panels on to see if you need to adjust the distance some more; make sure not to heat it up.
When finished, reassemble the side panels and top plate.
PCB overview
Here you can see a complete overview of the PCB.
YELLOW:
Exhaust fan 5 pin connector
Extra LED light/24v output
LED light window
Heater fan
Chassis fan (large computer fan at the back)
Touch screen
Exhaust temperature pt-100
Extra temperature pt-100
Air temperature pt-100
Bean temperature pt-100
RED:
Drop handle sensor
Charge handle sensor
RPM proximity sensor (monitors paddles)
Bean cooler warning sensor
First crack detection
Inlet K-type temperature sensor
Drum K-type temperature sensor
Wi-Fi antenna
Buzzer
BLUE:
Exhaust fan 3 pin connector
Power heating element (Solid state relay)
Bean cooler fan 5 pin connector
Bean cooler fan 3 pin connector
LED light bean cooler
Encoder
Chamber motor
Drop door motor
USB
Motor gear ratio explained
There are two pulleys and a timing belt connecting the motor and the paddles.
Depending on your model, the ratio between the two pulleys differs. On nearly all roasters up to p16, we had a 1:1 gear ratio, meaning the two pulleys were of equal size.
On some p16, we started using a 2:1 gear ratio to get double the torque.
Then we changed to 3:1 for more torque. 3:1 is now standard.
To improve performance with 3:1 gearing, we removed component r25 on the PCB. By removing r25, the setting in the menu must be 12:1. Gear ratio is 3:1, but the firmware needs 12:1.
Check your gear ratio settings in the service menu if you are experiencing issues with the motor, either by a warning message on the touchscreen, odd movements, or sounds from the drum. What gear ratio your machine should have depends on the model (what pulley ratio it has) and if the PCB has the r25 chip or not:
1:1 gearing + r25 on PCB = 1:1 gear ratio in service menu
2:1 gearing + r25 on PCB = 2:1 gear ratio in service menu
3:1 gearing + r25 on PCB = 3:1 gear ratio in service menu
1:1 gearing – (minus) r25 on PCB = 4:1 gear ratio in service menu
2:1 gearing - (minus) r25 on PCB = 8:1 gear ratio in service menu
3:1 gearing - (minus) r25 on PCB = 12:1 gear ratio in service menu
How to change: Impellers
How to change and clean the impellers on your ROEST.
Where to buy new impellers?
New impellers are only necessary if you have the older version and wish to upgrade or if they are broken. If your impellers are not spinning, the motor needs to be changed, not the impellers. Contact our Support Team in this case or go to our e-shop to buy new ones (one for each side). If you wish to buy new impellers, go here:
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
2.5-millimeters, 3-millimeters, and 4-millimeters hexagonal key.
Cutters.
Philips screwdriver
Flat ended screwdriver
You will also need a 1-millimeter spacer (can be anything, a piece of paper or similar).
Parts
The set consists of a left impeller and a right impeller. They are specific to their side. Our team should mark the impellers before shipping them so you can know their differences.
Instructions
Before starting - remove the top plate and both side panels.
Removing the chaff separator
1. Orientate the roaster with the exhaust duct facing the operator.
2. Remove four off M4 x 6 cap head screws around the exhaust duct holding the chaff separator.
3. Disconnect the tube from the chaff separator and exhaust duct from the bean stopper.
4. Disconnect the tube from the chaff separator and exhaust duct from the bean stopper.
5. Disconnect fan connectors from PCB marked 1, 3, and 4 in blue and 1 in yellow.
6. Disconnect the tube from the chaff separator and exhaust duct from the bean stopper.
7. Remove one off M3 x 6 cap head screw from the mesh to separate the back panel from the chassis.
9. The chaff separator is now free and can be removed from the inside of the roaster.
8. Unscrew three off M5 x 8 screws from the chaff drawer. NB: ensure that the split washers on the M5 x 8 screws are kept on the screws. The screw on the innermost side doesn’t need to be fully removed, only loosened enough to allow the chaff separator to slide out.
Removing the impellers
1. Place the chaff separator with the brushless motors facing the desk.
2. Unscrew ten off M4 x 6 cap head screws.
3. Separate the air intake housing from the cyclone separator to access the impellers.
NB: a flat screwdriver may need to be used to separate due to the build-up of chaff and oil.
4. Take an image/refer to the orientation and location of the left and right impellers before removing them. NB: the impellers are speci fic. They must be installed on the correct side for the chaff separator to work correctly.
5. Use a 4-millimeter hexagonal key to loosen the impeller on both the left- and right-hand sides.
6. Lift the impellers from the motor shaft. Repeat for each side.
7. The impellers are now free for you to clean, or you can install new ones.
Optional: cleaning the impellers
At this point, your impellers can be cleaned if you wish to. We use a fat cleaner and let the impellers soak in this for a while. Afterward, we wash it off with soapy water. You can use a brush if you need to, but be careful not to remove the balancing clip from the impeller if it has one.
The balancing clip.
Installing the impellers
When installing the impellers, place a 1-millimeter-thick spacer on the face of the impeller housing. The spacer can be a piece of paper, cardboard, or something similar. It is just there to create a gap between the impellers and the impeller housing.
1. Install the impeller on the shaft on top of the spacer and tighten the grub with a 4-millimeter hexagonal key. Remove spacer. Repeat for the other side.
2. Place the cyclone separator on top of the air intake housing.
3. Screw all M4 x 6 cap head screws to secure both components together.
4. Locate the re-assembled chaff separator into the chaff drawer and align the exhaust with the rear.
5. Screw 3 M5 x 8 screws into the chaff drawer and tighten.
6. Screw 4 M4 x 6 cap head screws through the back panel into the chaff separator and tighten.
7. Screw 1 of M3 x 6 cap head screw through the mesh to attach the back panel from the chassis.
8. Reconnect the exhaust and bean cooler pipes.
9. Reconnect the exhaust and bean cooler pipes.
10. Connect fan connectors from PCB, marked 1, 3, and 4 in blue and 1 in yellow.
Reattach the side panels and top plate.
How to change: Chassis fan
How to change the chassis fan on your ROEST.
Where to buy a chassis fan?
If you are sure your chassis fan is broken (you have talked to our Support Team) visit our e-shop to purchase a new one!
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
Cutters
Philips screwdriver
Parts
Chassis fan
Cable ties
Instructions
2. Remove the left side panel.
3. Disconnect the connector from PCB and the extension cable from the fan cable. NOTE: the extension cable can be reused for the replacement fan.
4. Cut any cable ties fastening the cable to the roaster.
5. Pull the cable through, so it is loose and hanging from the roaster.
6. Take a photo/reference of the orientation of the ventilation fan before removal. NOTE: fan is meant to draw air into the roaster to keep components cool.
The correct orientation of the fan is shown in the image on the left, seen from the inside of the roaster.
7. Orientate the roaster, so the back is facing you.
8. Using the Phillips screwdriver bit, remove the four fourscrews holding the fan in place.
NOTE: Screws have split washers on them, please take care not to lose them!
9. Remove the old ventilation fan.
10. Locate the new fan in the correct orientation.
11. Fasten all four bolts until tight.
Align holes on the fan with holes on the back of the roaster before installing bolts
12. Feed cable over the top of the chaff separator.
13. Attach extension cable to fan connector.
14. Attach the connector to PCB.
NOTE: PCB reads “VentFan1”
15. Fasten any loose cables to the roaster.
16. Install the left side panel.
18. Plug the roaster in, turn it on and test the chassis fan. If it doesn’t work, contact the ROEST support team.
How to change: Buzzer
This is the guide on how to change the buzzer on your ROEST.
Where to buy buzzer?
If you are sure your buzzer is broken (you have talked to our Support Team) visit our e-shop to purchase a new one!
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
Flat ended screwdriver
Cutters
Parts
Buzzer
Cable ties
M5 x 6 cap head screw
Silicone
Instructions
2. Remove the left side panel.
3. Take a photo of the cable location on the PCB and how cables are fastened to the motor bracket ((LED1) on PCB) to know where to relocate and fasten the new component.
Buzzer connector on PCB
Cables fastened to motor bracket ((LED1) on PCB)
4. Remove the buzzer connector from PCB.
5. Using the small flat-ended screwdriver, pry the faulty buzzer away from the back plate.
6. Cut the cable ties to release the buzzer. NOTE: Take care not to cut through any cables.
Only cut the amount of cable ties required to release cable.
7. Apply four silicone dots around the buzzer, approximately 10-millimeter in size.
8. Install the buzzer.
Locate the M5 x 6 screw through the front of the back plate
Locate buzzer hole into screw and press onto the back plate.
NOTE: Ensure that the orientation of the cable is the same as in the image.
9. Plug the buzzer cable back into the PCB.
10. Cable tie the buzzer back into position.
11. Use cutters to trim the excess ends from cable ties.
12. Leave silicone to dry for approx. 30 minutes before reassembling.
13. Remove the M5 x 6 cap head screw after the silicone has been left to dry for 30 minutes.
14. Install the left side panel.
16. Plug the roaster in, turn it on and test the buzzer. If it doesn’t work, contact the ROEST support team.
How to change: Power supply
This is the guide on how to change the power supply on your ROEST.
Where to buy power supply?
If you are sure your power supply is broken (you have talked to our Support Team) visit our e-shop to purchase a new one!
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
2.5-millimeter hexagonal key
Padded mat
Philips screwdriver
Parts
Using the Philips screwdriver loosen the hose clip
Pull off the exhaust tube
Pull off the exhaust tube
4. Take a reference picture of the location of the cables prior to removing them.
5. Remove the 5 horse-shoe cables from the power supply.
Loosen the screws with the Philips screwdriver
Cables removed
6. Place the padded mat on the desk and lay the roaster down on its side, ensuring that the mat protects the right-side panel (which remains installed).
Padded mat should be underneath
7. Using a 2.5-millimeter hexagonal key, remove the three cap head bolts on the roaster’s base.
8. Remove the power supply from the roaster.
9. Insert the new power supply and align the holes to screw the three bolts on the base.
10. Position the roaster back up.
11. Reattach the five cables into the power pack using the image taken in step 4.
12. Reattach the exhaust tube.
Ensure that you fasten the hose clip around the chaff separator
13. Install the left side panel.
15. Plug the roaster in, turn it on and test it. If it doesn’t work, contact the ROEST support team.
How to remove and install side panels
Before you start
⚠️DISCLAIMER
Information in this document is believed to be accurate and reliable. However, the manufacturer does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of the use of such information. The manufacturer is not liable or responsible for any problems arising from the attempted repair. The manufacturer reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. The manufacturer's products are not designed, authorized, or warranted to be suitable for use in applications where failure or malfunction can reasonably be expected to result in personal injury, death, or severe property or environmental damage. The manufacturer accepts no liability for inclusion and/or use of its products in such equipment or applications and therefore such inclusion and/or use is for the customer’s own risk.
⚠️SAFETY INSTRUCTIONS
make sure the roaster is turned off
the power cord has to be unplugged
follow the steps as instructed below
Tools
2-millimeter and 4-millimeter hexagonal tool
T20 Torx screwdriver or 3-millimeter hexagonal tool.
Padded mat
How to remove side panels
1. Place the roaster on a padded mat to provide a solid base for the machine to stand on once the side panel is removed so it is easier to work with.
3. Remove the trier and the cooling tray to work easier.
4. With the 2-millimeter hex tool, remove the countersunk bolt from the front décor plate (bottom left at the front).
For left side panel removal
For right side panel removal
5. Remove the screws at the back. Depending on the machine model, you must use a TX20 (wood) or a 3-millimeters hex tool (black). Some older models have three screws instead of four.
For left side panel removal
For right side panel removal
6. Remove the three screws under the roaster corresponding to the panel you want to take off. You can gently lay the roaster on its side or push the machine to the edge of the table so that the line of screws is visible.
Lay the roaster gently on its side.
Or push the machine to the edge of the table so that the line of screws is visible.
7. When you are taking off the side panel, loosen the cap head bolt (on the inside of the machine) holding the panel in place using the 4-millimeters hex tool.
8. Gently take the side panel off and place it on a protective surface to keep it safe.
How to install side panels
1. Start installing the side panel from the front and below. Fit the sleeve bearing in the wooden panel into the small metal projection on the side.
Metal projection
Sleeve bearing
2. Fit the brackets into the metal plates.
The side bracket of the panel goes inside the front plate
The back bracket of the panel goes below the backplate
3. When installing the left side panel, install the cap head bolts with the 4-millimeters hex tool once it is in place. Tighten it while pushing the roaster together.
Unfired bolt
You can use your body as a counterweight
4. Take the 2-millimeter hex tool and tighten the countersunk bolt on the front. Do not overtighten it.
For left side panel installation
For right side panel installation
5. Install the back screws and the bottom screws. Do not fully tighten them until the last one is in its place.
Push the machine to the edge of the table when installing the bottom screws
6. Once the last bolt is in, push the roaster together (move the side panels inwards) and tighten the screws (no need to apply a lot of torque). Make sure that no cables are being squeezed.
Video instructions
This video shows how to remove and replace the black side panels, but it can also be used for wooden side panels. The only difference is that the type of screws is different.
-
Adjustable roasting parameters
Service menu - includes recommended settings for motor gear ratio, cooling fan, heater fan, and PID settings.
-
